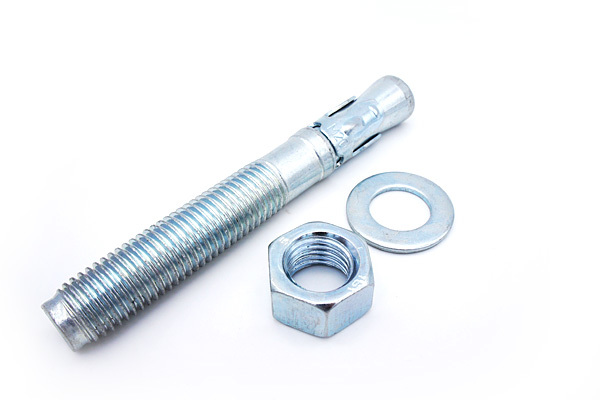

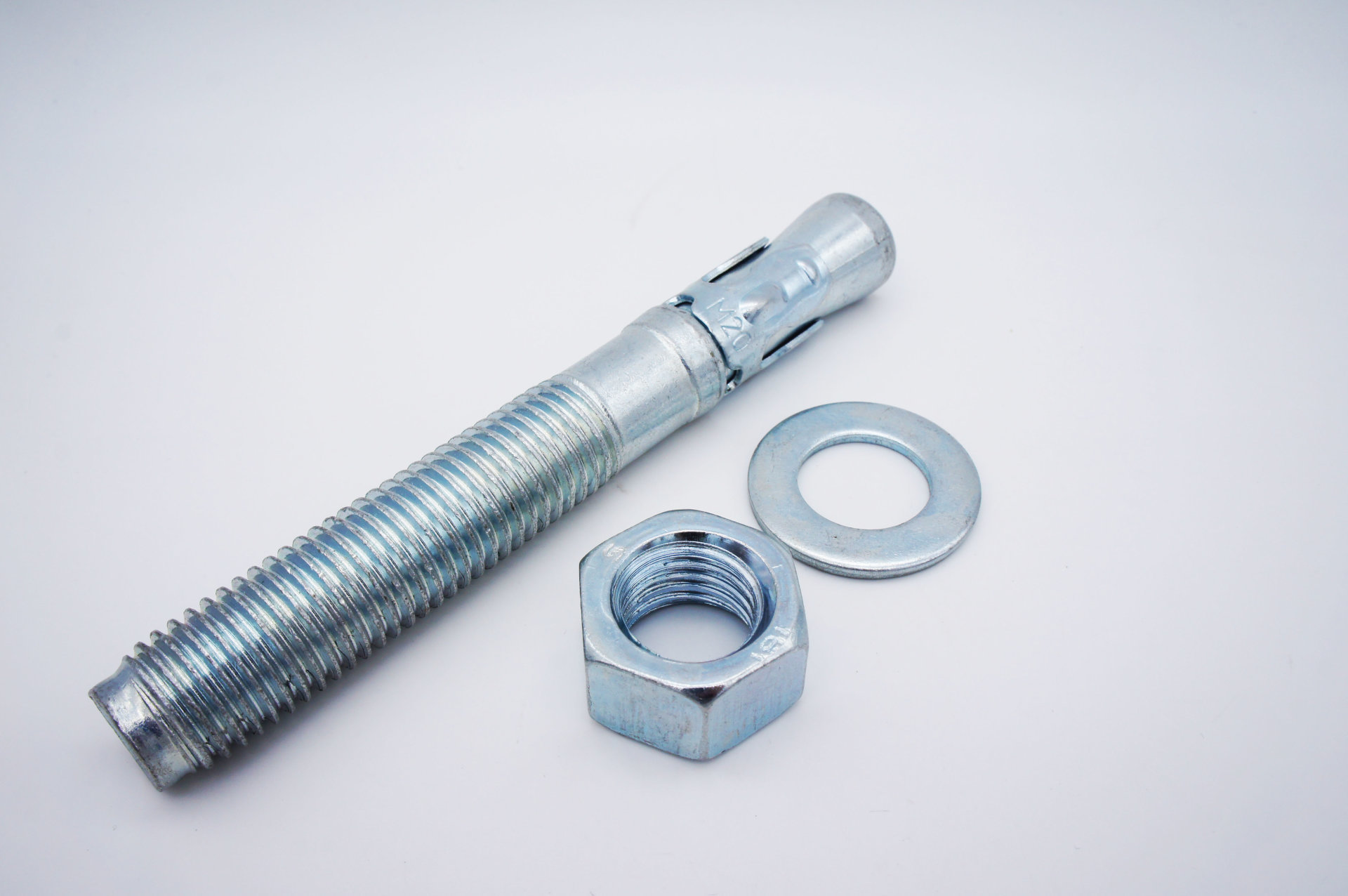

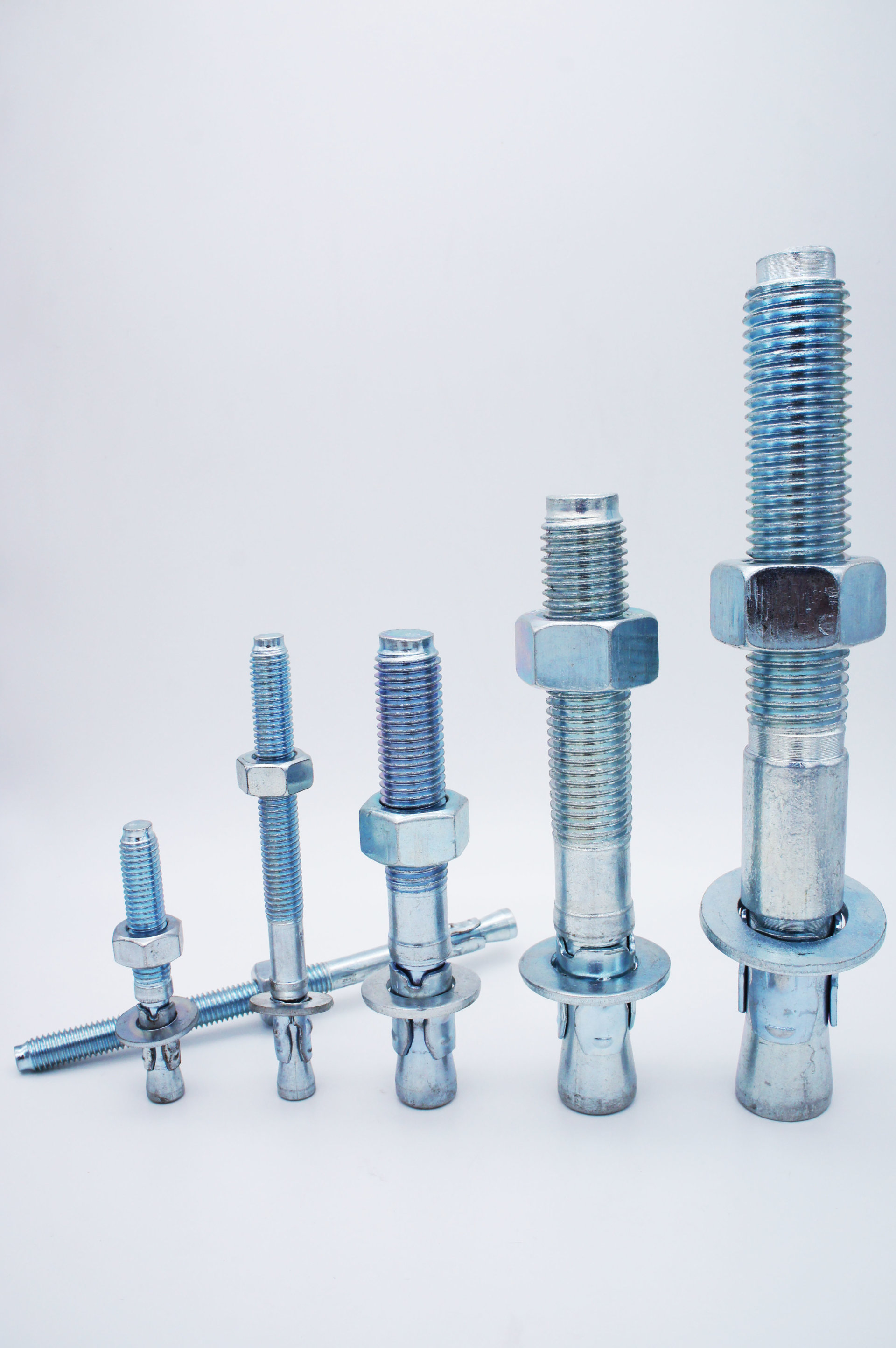

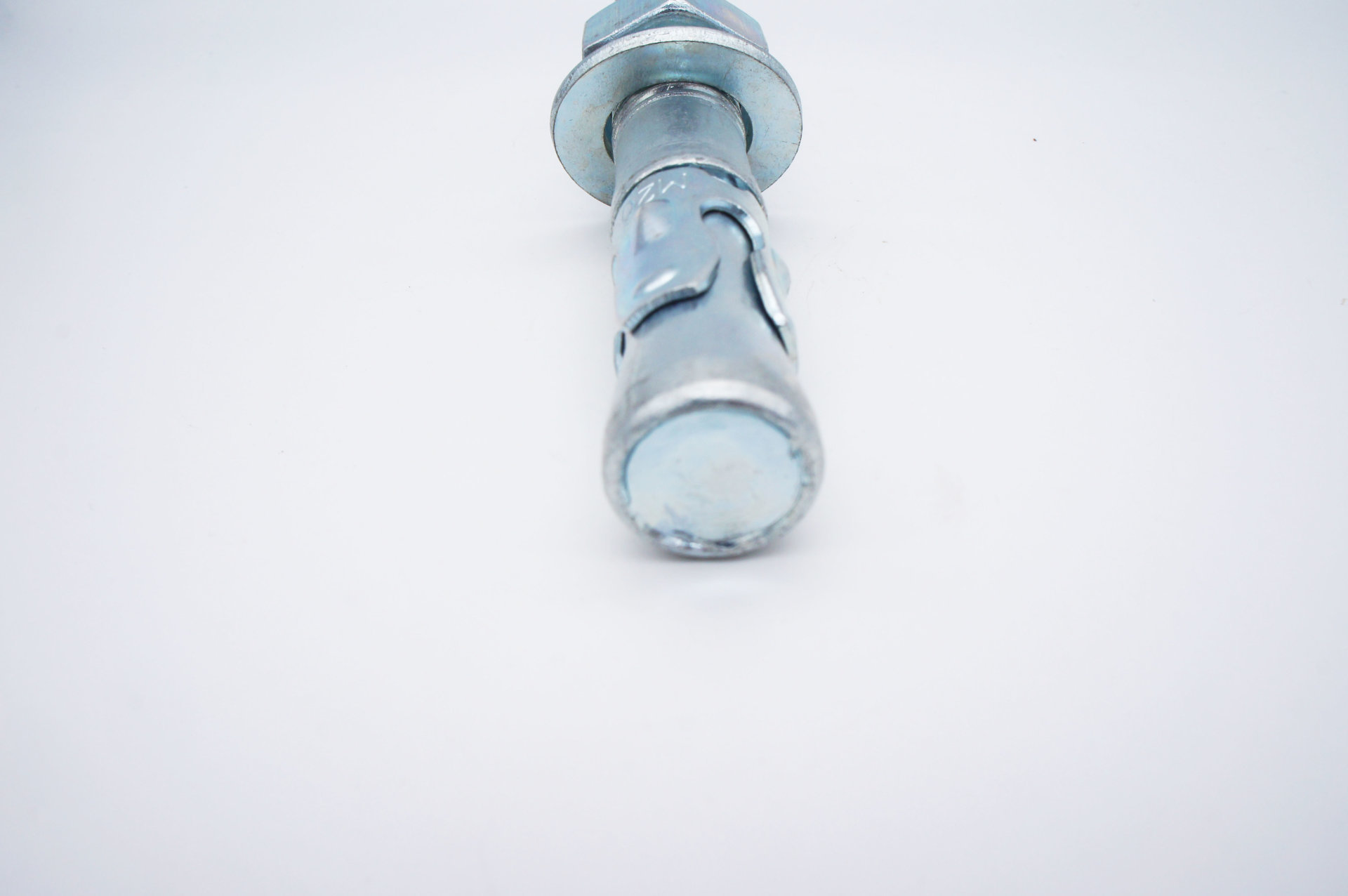

Custom M6-M24 Wedge Metal Anchor Bolts , Steel Zinc Plated Wall Anchor Bolts
The wedge anchor bolts, concrete cavity depth and no higher cleanliness requirements, easy to install and inexpensive. Jacking by selecting the appropriate thickness of the buried depth, with the increase of buried depth, tension increased after the products are reliable and expandable functionality.
- Commodity name： Custom M6-M24 Wedge Metal Anchor Bolts , Steel Zinc Plated Wall Anchor Bolts
- Commodity ID： 1022437131131117568
The wedge anchor bolts, concrete cavity depth and no higher cleanliness requirements, easy to install and inexpensive. Jacking by selecting the appropriate thickness of the buried depth, with the increase of buried depth, tension increased after the products are reliable and expandable functionality. Body material: stainless steel, carbon steel and other metal materials. Also known as through bolts, expansion bolts and expansion anchors, which is designed for consistent performance in concrete. There has three kinds of wedge anchors: fully threaded, partial threaded and the full-bodied wedge anchor. Wedge anchor can be hammered below the surface of the concrete while no longer needed. Anchor diameter equals drill hole size. The expansion clip is formed around anchor, providing full expansion for dependable,superior supporting power. Expanding clip will not fall off or twist in the hole. Each wedge anchor has a minimum embedment requirement. The anchor diameteris the same as the drill hole size. Widely used in securing the through objects' fastening, such as equipment,channel steel, guide rail, holder, steel structure, escalator, handrail and curtain wall etc. Every wedge anchor can be suitable for the standard anchorage depth, and also fit for shallow mining depth, to provide supreme flexibility for installation. Moreover the long thread offering the spacing installaiton, and can be flexibly adjustable to easy the installation.
Size Amount in one box Weight(g) M6*50 2400 13.8 M6*80 1600 16.4 M6*120 1200 23.2 M8*50 1200 22.7 M8*75 800 30.51 M8*100 720 37.96 M8*150 480 53 M10*60 640 44.1 M10*75 560 50.6 M10*90 480 57.7 M10*100 440 62.33 M10*120 424 66.8 M10*130 384 76.04 M10*150 320 85.1 M12*75 420 71 M12*100 320 90.58 M12*120 288 105.35 M12*140 240 119.35 M12*160 200 133.5 M12*200 160 161.35 M16*100 200 165.16 M16*120 160 191.06 M16*140 120 213.36 M16*150 120 231.36 M16*180 90 268.56 M16*220 80 322 M16*150 60 357 M16*300 48 414.38 M20*140 88 355.56 M20*160 80 394.62 M20*200 60 477.56 M20*220 60 512.58 M20*260 40 589.78 M24*150 30 600 M24*200 30 750 M24*250 20 1000 M24*300 20 1200
1. Good after-dales service, Any samall problems will be solved at the prompt time.
2. Many years of export experiences.
3. Specification list is avaliable upon your request.
4. Welcome to send requry, we will reply soon.
5. Prompt shipment with professional documents.
6. Custom packing with photo bafore shipment.
7. High quality and competitive price.
HEBEI YUETONG FASTENERS MANUFACTURING CO.,LTD is located in China's largest fasteners production base---Yongnian fasteners centre.
Our factory was founded in 1991.We have several sets of advanced equipments, adopt advanced modern management and use high quality steel to produce high quality products. The products sold throughout the domestic and exported to Southeast Asia and Europe and other countries and regions. Our products win good reputation with domestic and foreign customers.
Our factory mainly produces: all kinds of flat washers, spring washers, expansion screws, hex nuts, flange nuts, hex bolts, flange bolts, sleeve anchor, fundation bolts, and thread robs with DIN, BSW, ANIS,MS.And we also provide the OEM, Meanwhile, we are manufacturing factory, so we can give you the best quality and the good price.
PACKING & DELIVERY
1. Packing Details: Boxex on pallets; As customer's requirements.
2. Delivery Dtetails: 25 days after order.
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Denerally it is 5-10days if the goods are in stock, or it is 15-25days if the goods need be produced, it is according to quantity you want.
Q: What is your terms of payment?
A: Payment <= 1000USD, 100% in advance. Payment >= 1000USD, 30% T/T in advance, balance before shipment.
HEBEI YUETONG FASTENERS MANUFACTURING CO.,LTD
Contact Person: Aimee
- Wedge Anchor
- Metal Anchor Bolts
- Anchor Bolts
NOTE: Please leave your email, our professional person will contact you asap!
