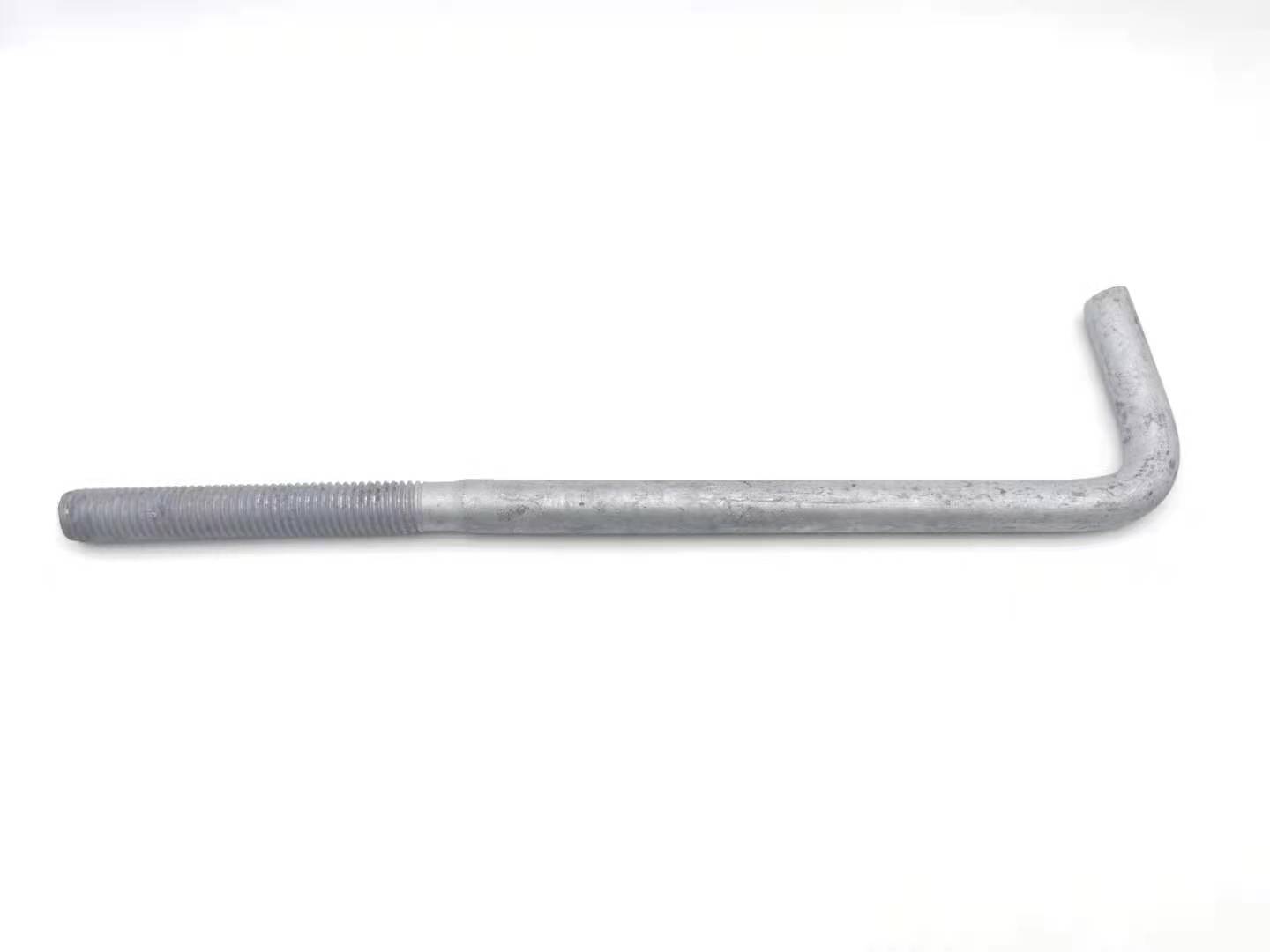

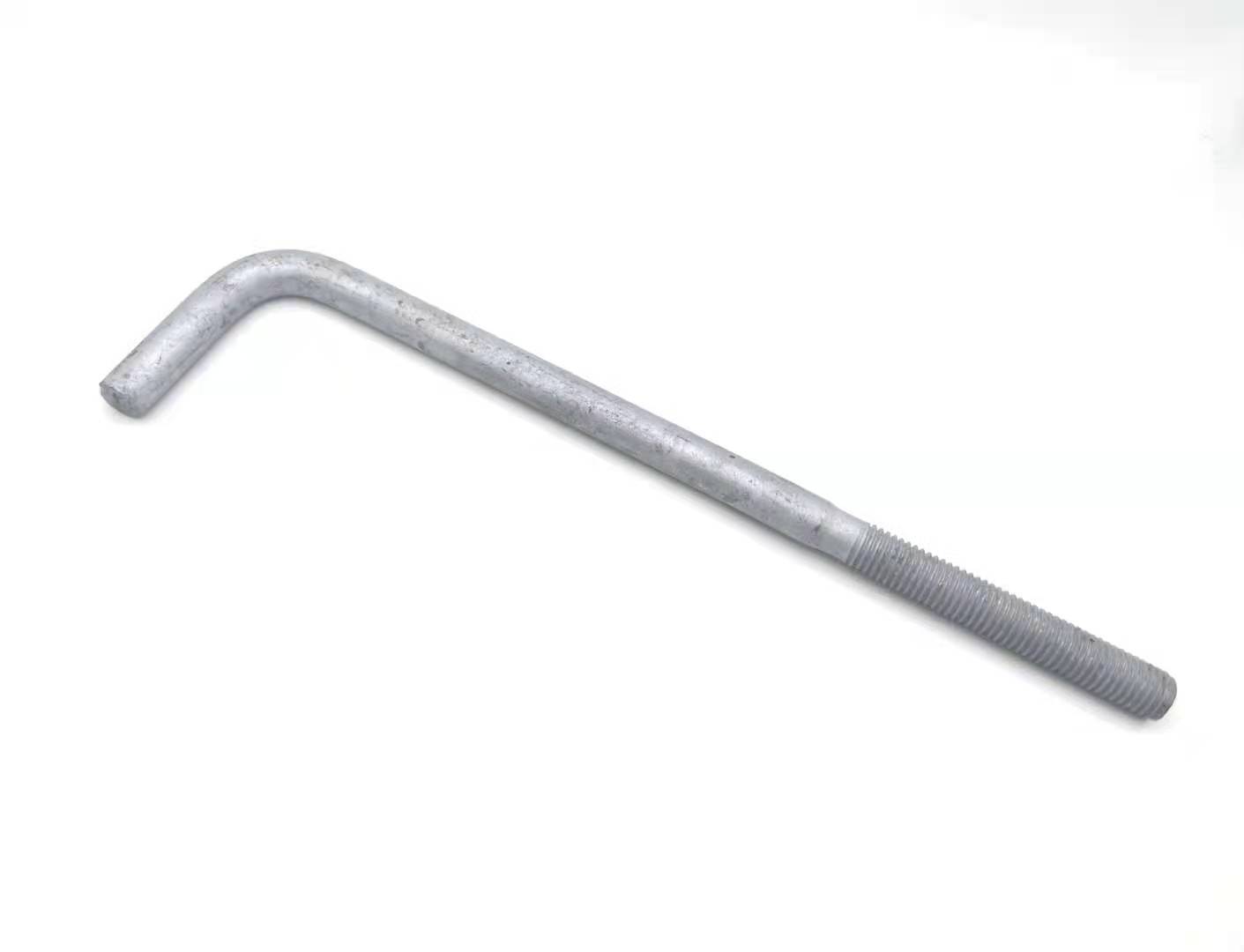

7-shaped anchor bolt foundation L 7 type bolt right-angle anchor hook boltDIN529

L-shaped anchor bolts are commonly used foundation members for anchoring steel columns and other anchors. They are named because they are "L"-shaped in shape.Also known as: straight hook anchor bolts, 7-shaped anchor bolts, anchor bolts, anchor bolts, anchor screws, anchor wires, etc.

  • Commodity name: 7-shaped anchor bolt foundation L 7 type bolt right-angle anchor hook boltDIN529
  • Commodity ID: 1022435513811689472
  • 产品描述
  • 7-shaped anchor bolt foundation L 7 type bolt right-angle anchor hook bolt

    Product Description:

    L-shaped anchor bolts are commonly used foundation members for anchoring steel columns and other anchors. They are named because they are "L"-shaped in shape.Also known as: straight hook anchor bolts, 7-shaped anchor bolts, anchor bolts, anchor bolts, anchor screws, anchor wires, etc.

    It is specially designed to be buried in the concrete foundation and used as the base for fixing various steel structure support columns and machinery and equipment. 1.The L-shaped anchor bolt belongs to the national standard    GB/T 799-1988. 2.Scope of application of l-shaped anchor bolts   Steel structure workshop, steel structure building, fixing various steel structure support columns, etc. 3.L-shaped anchor bolt specifications   Common specifications of workshop: M24*750, M27*850, M30*950(1000), M36*1150 4.L-shaped anchor bolt grade Grade 3.6, 4.8, 5.8, 6.8 and 8.8. The tensile capacity of 3.6-grade 7-character anchor bolt is the tensile capacity of steel itself, and its size is equal to the cross-sectional area multiplied by the design value of tensile strength (140MPa), which is the allowable tensile bearing capacity in design. The tensile strength of anchor bolts directly processed with Q345B or 16Mn raw materials can reach 5.8 grade tensile strength. For the tensile strength of grades 4.8, 5.8, 6.8 and 8.8, refer to the provisions on mechanical properties in GB/T3098.1. 5.Material of l-shaped anchor bolt   Q235,Q345B,16Mn。

    Generally, it is made of Q235 steel. The high-strength one is made of Q345B or 16Mn, and the product with 8.8-grade strength is also made of 40Cr. Occasionally, it is made of secondary or tertiary rebar. 6.L-shaped anchor bolt form   The forms of anchor bolts are as follows: wool, thick rod and thin rod; Wool is the raw material steel, which is directly processed with round steel or wire rod without restructuring; Thick rod or A-type, thin rod or B-type, are all made of steel after being converted into corresponding required rod diameter.

SERIVCE

1. Good after-dales service, Any samall problems will be solved at the prompt time.

2. Many years of export experiences.

3. Specification list is avaliable upon your request.

4. Welcome to send requry, we will reply soon.

5. Prompt shipment with professional documents.

6. Custom packing with photo bafore shipment.

7. High quality and competitive price.



COMPANY INTRODUCTION

HEBEI YUETONG FASTENERS MANUFACTURING CO.,LTD  is located in China's largest fasteners production base---Yongnian fasteners centre.

Our factory was founded in 1991.We have several sets of advanced equipments, adopt advanced modern management and use high quality steel to produce high quality products. The products sold throughout the domestic and exported to Southeast Asia and Europe and other countries and regions. Our products win good reputation with domestic and foreign customers.

Our factory mainly produces: all kinds of flat washers, spring washers, expansion screws, hex nuts, flange nuts, hex bolts, flange bolts, sleeve anchor, fundation bolts, and thread robs with DIN, BSW, ANIS,MS.And we also provide the OEM, Meanwhile, we are manufacturing factory, so we can give you the best quality and the good price.



PACKING & DELIVERY

1. Packing Details: Boxex on pallets; As customer's requirements.

2. Delivery Dtetails: 25 days after order.
