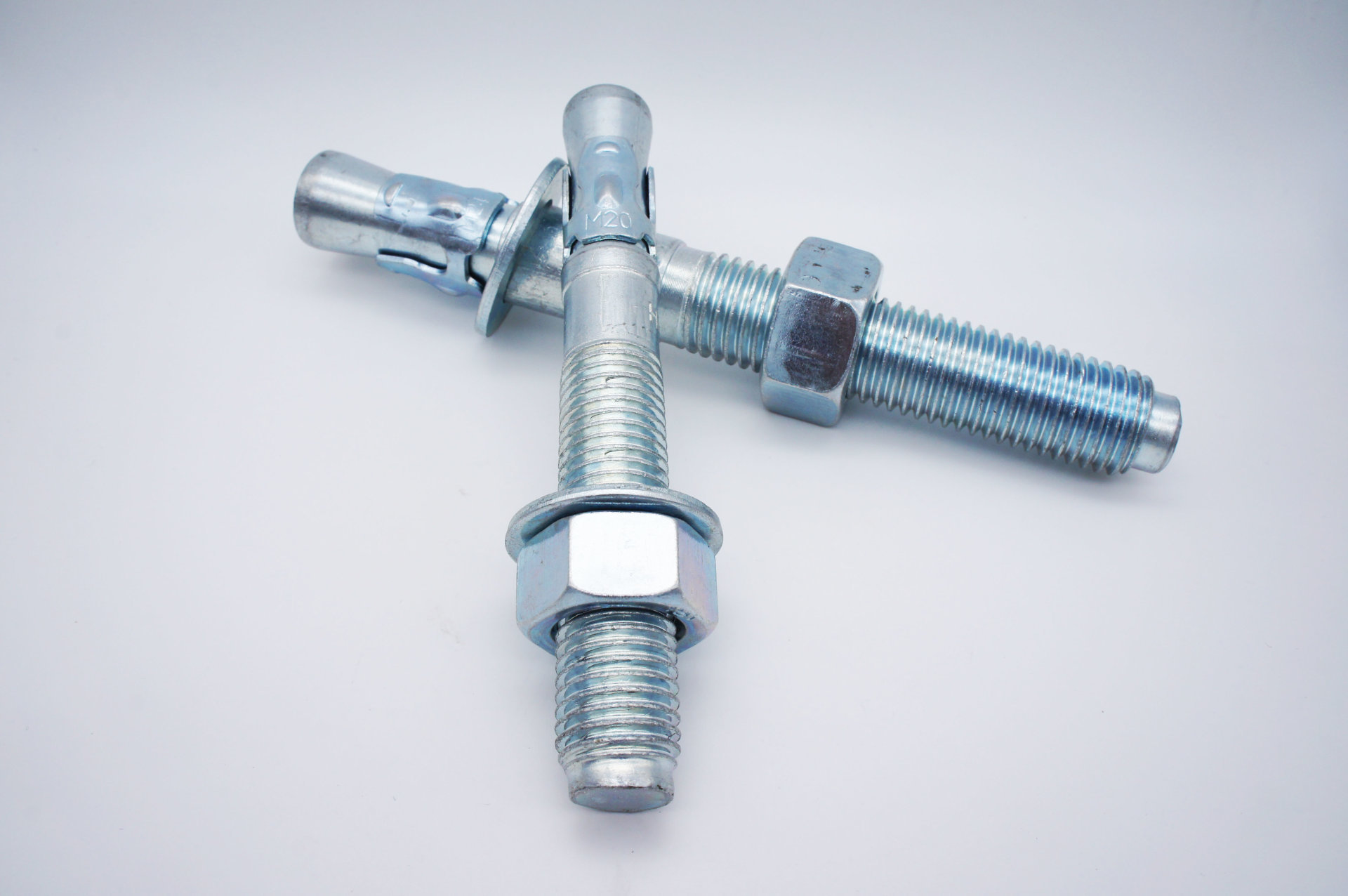

Wedge Metal Anchor Bolts M12x100 , Through Bolt Anchor For Concrete Carbon Steel

The wedge anchor bolts, concrete cavity depth and no higher cleanliness requirements, easy to install and inexpensive. Jacking by selecting the appropriate thickness of the buried depth, with the increase of buried depth, tension increased after the products are reliable and expandable functionality.

  • Commodity name: Wedge Metal Anchor Bolts M12x100 , Through Bolt Anchor For Concrete Carbon Steel
  • Commodity ID: 1022437527627063296
  • 产品描述

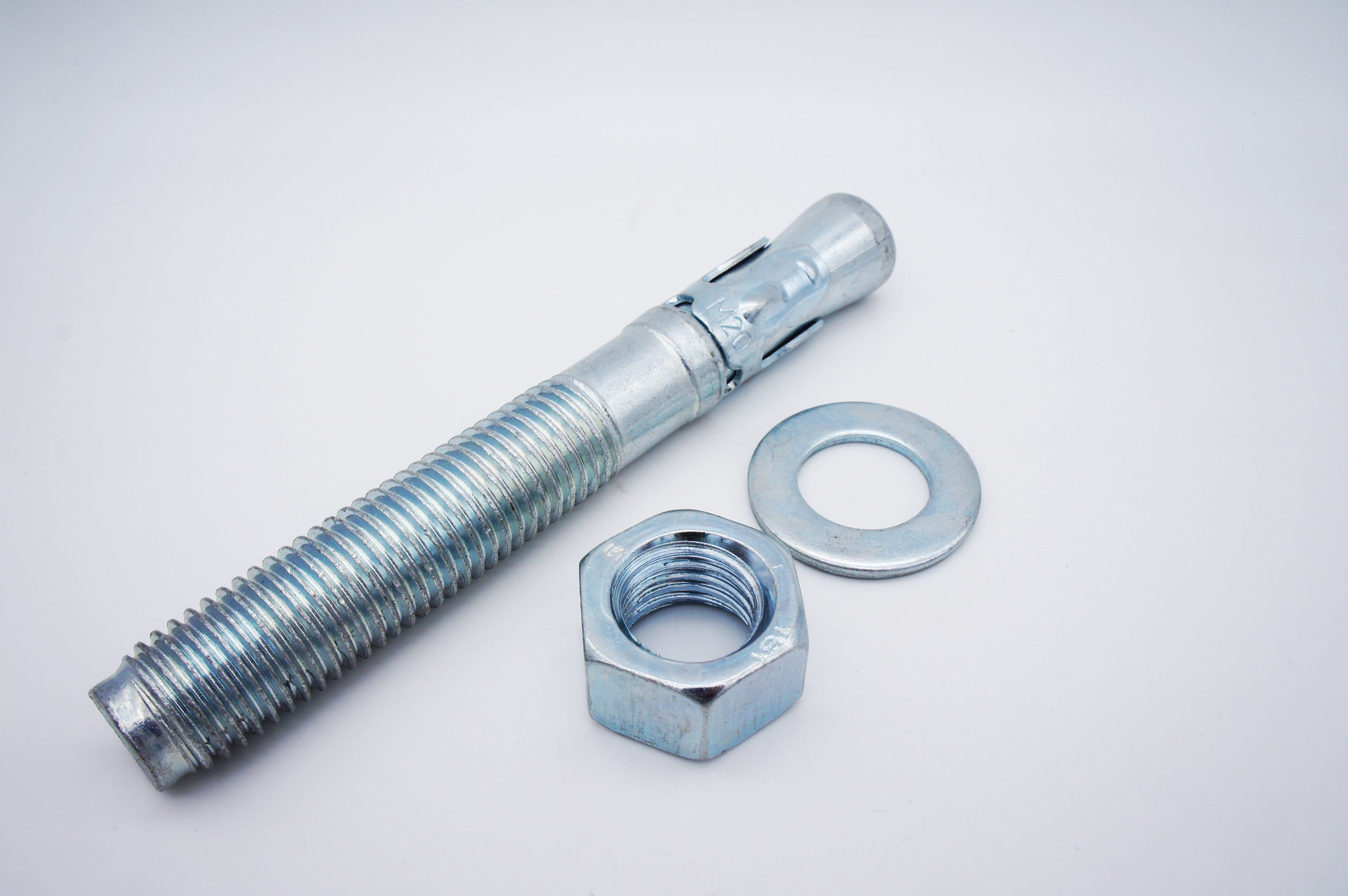

  • Carbon Steel Material Wedge Anchor M12*100 With Blue & White Zinc Plated

    Produts Description

    The wedge anchor bolts, concrete cavity depth and no higher cleanliness requirements, easy to install and inexpensive. Jacking by selecting the appropriate thickness of the buried depth, with the increase of buried depth, tension increased after the products are reliable and expandable functionality.

    Body material: stainless steel, carbon steel and other metal materials. Also known as through bolts, expansion bolts and expansion anchors, which is designed for consistent performance in concrete. There has three kinds of wedge anchors: fully threaded, partial threaded and the full-bodied wedge anchor. Wedge anchor can be hammered below the surface of the concrete while no longer needed. Anchor diameter equals drill hole size.

    The expansion clip is formed around anchor, providing full expansion for dependable,superior supporting power. Expanding clip will not fall off or twist in the hole. Each wedge anchor has a minimum embedment requirement. The anchor diameteris the same as the drill hole size. Widely used in securing the through objects' fastening, such as equipment,channel steel, guide rail, holder, steel structure, escalator, handrail and curtain wall etc. Every wedge anchor can be suitable for the standard anchorage depth, and also fit for shallow mining depth, to provide supreme flexibility for installation. Moreover the long thread offering the spacing installaiton, and can be flexibly adjustable to easy the installation. Specification

    Size Amount in one box Weight(g)
    M6*50 2400 13.8
    M6*80 1600 16.4
    M6*120 1200 23.2
    M8*50 1200 22.7
    M8*75 800 30.51
    M8*100 720 37.96
    M8*150 480 53
    M10*60 640 44.1
    M10*75 560 50.6
    M10*90 480 57.7
    M10*100 440 62.33
    M10*120 424 66.8
    M10*130 384 76.04
    M10*150 320 85.1
    M12*75 420 71
    M12*100 320 90.58
    M12*120 288 105.35
    M12*140 240 119.35
    M12*160 200 133.5
    M12*200 160 161.35
    M16*100 200 165.16
    M16*120 160 191.06
    M16*140 120 213.36
    M16*150 120 231.36
    M16*180 90 268.56
    M16*220 80 322
    M16*150 60 357
    M16*300 48 414.38
    M20*140 88 355.56
    M20*160 80 394.62
    M20*200 60 477.56
    M20*220 60 512.58
    M20*260 40 589.78
    M24*150 30 600
    M24*200 30 750
    M24*250 20 1000
    M24*300 20 1200
